PRODUCT DETAILS

Crawler-mounted and truck-mounted water well drilling rigs with full hydraulic control — efficient drilling for water wells, irrigation, geothermal and coalbed methane.

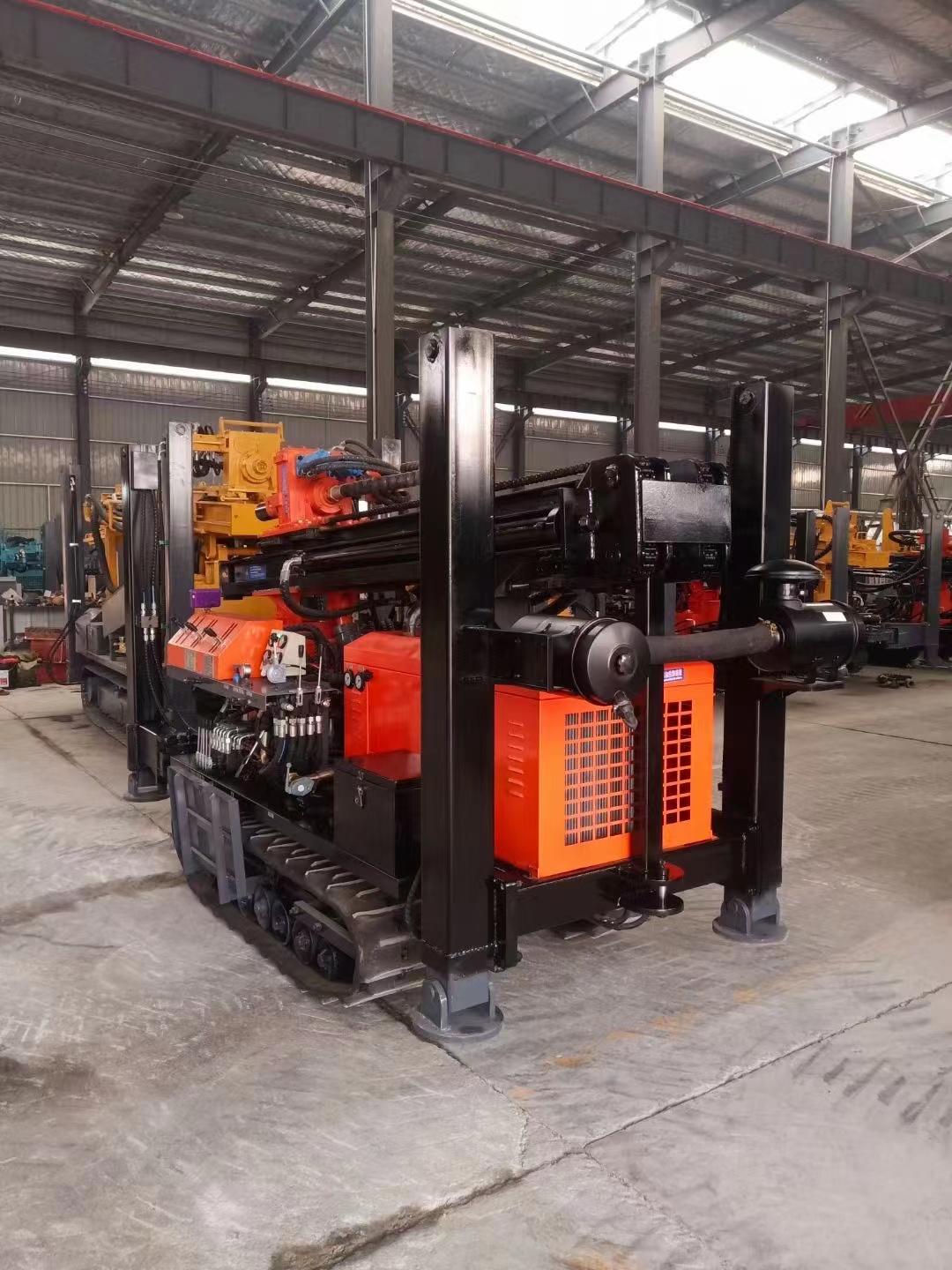

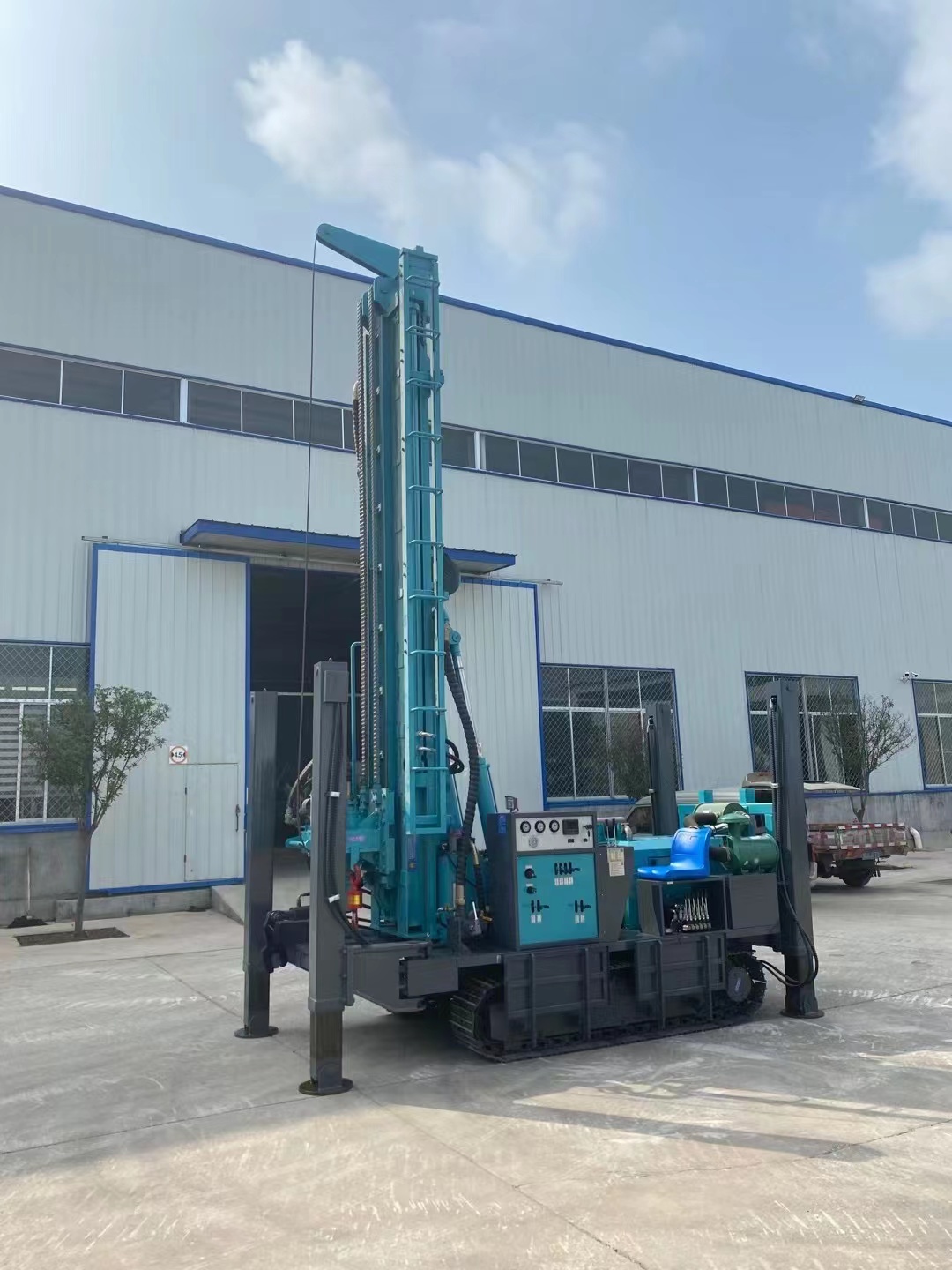

Crawler Mounted Water Well Drilling Rig

An efficient, multi-purpose down-the-hole water well drilling rig. It drills water wells, agricultural irrigation wells, geothermal wells and more, and works in mountainous and rocky water-intake projects.

• Drills in different formations with a maximum hole diameter of 450mm
• High-torque hydraulic motor power head and brand-name diesel engine; large-diameter hydraulic oil cylinders; two-stage air filter protection allows direct use of clean air from the compressor
• Unique buffer device design and centralized control operation system — easy to maintain and operate
• Excavator crawler chassis for high off-road performance; can also be truck-mounted for mobility
• Two-speed rotation and feed, adapting to both soil and rock formations

Specifications

Model	DS-FY180	DS-FY200
Drilling depth	180m	200m
Hole diameter	140–254mm	140–305mm
Drilling angle	90–75°	90–75°
Walking speed	2.5km/h	2.5km/h
Stroke	3300mm	3400mm
Climbing capacity	30° max	30° max
Ground clearance	250mm min	250mm min
Air pressure	1.7–2.5Mpa	1.7–3.0Mpa
Air consumption	17–30m³/min	17–30m³/min
Main power	55Kw	65Kw

DSC-300 Truck Mounted Water Well Drilling Rig

The overall layout is transported by tractor traction or an all-terrain chassis, with a compact rig structure. It is widely used for hydrological wells, coalbed methane, shale gas and geothermal drilling, and suits geotechnical surveys in roads, railways, water conservancy, bridges, reservoir dams, high-rise buildings, mines, water wells and foundation engineering. Large drilling depth, large hole diameter and strong adaptability; the crawler chassis gives excellent off-road performance and high overall stability.

Specifications

Item	Specification
Weight	22 T
Hole diameter	140–273 mm
Drilling depth	300 m
One-time advance length	3.3 m
Walking speed	80 km/h
Using air pressure	2.5 Mpa
Air consumption	31 m³/min
Drill pipe diameter	89 mm
Driving form	6×4
Steering wheel	Right
Overall dimensions	11500×2500×3400 mm
